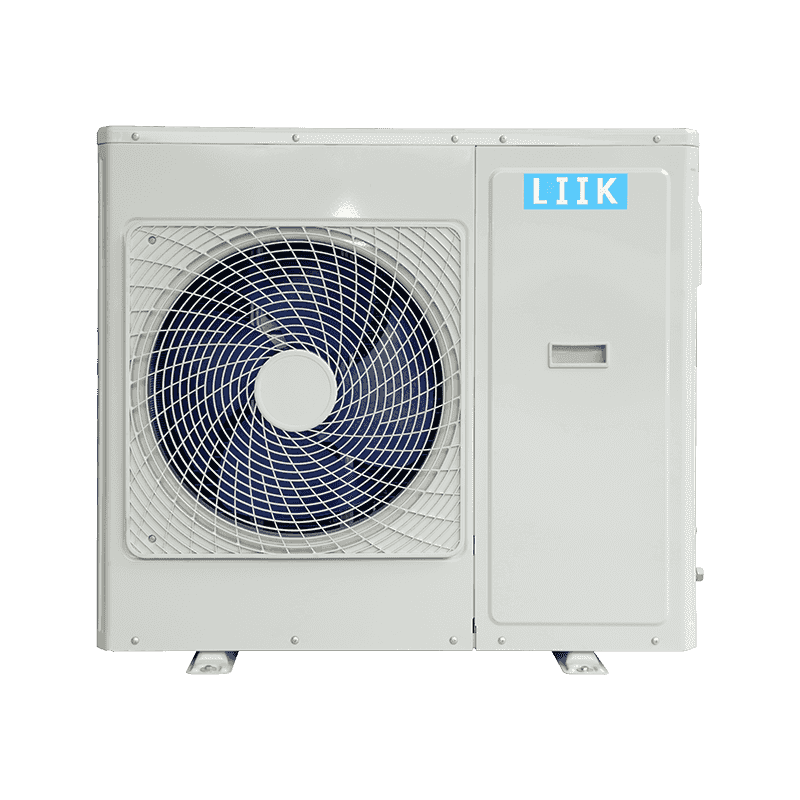

Medium And Low Temperature Commercial Refrigeration Condensing Unitates
Features:
Condensatio unitatis LKPG range ad refrigerationem commercialem in mediis et infimis temperaturis destinatur.
Specialiter designatur cum condensatore tropico, et operatione humili soni.
facilem sustentationem, optimas partes praestare finalis qualitatis imperium.
omnes unitates densantes cum ordinatione CE&ROHS sunt.
Accessiones:
* Potestas iactaret cadmiam laminam cum magno corrosione viribus
*Tropical condenser coil in tubo cupreo et aluminio pinnae
* Sana velit
* Hermeticum volumen seu reciproco compressor
* Crankcase calefacientis
* Dural pressura switch latis reset
* Solinoid valvae in liquida linea
* Filter siccior in liquida linea
* Visus vitrum cum humore indicator
* Liquida recipientis
* Salus valvae subsidio
* Claudite valvulae pro linea liquida et suctu.
Libitum items:
* Inaedificata electrica imperium panel
* Fan celeritas controller secundum condenser pressura
* Oleum separator
*Diversi voltage & gas
- Product Description
+86-1882061600
Exemplar partitio:
LKPG 4001Z MS
S: unum tempus (T: tres tempus)
M: media & caliditas (L: frigiditas)
R404A
FanФ(mm)"N⁰
series
| MBP K404A | Compressor | Axial Fan Motor | sonitus | Pipe Fittings | N.W. | ||||||||||
| Exemplar | 220/1/50 | 380/3/50 | Hp | W | N⁰X∅ | M³/h | Poloni | 220/1/50 | effusio | dist=10m | D | S | Kr | ||
| Code | W | A | dba | mm | mm | ||||||||||
| LKPG4001Z MS | CAE9460Z | ★ | 1/2 | 697 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 33 | 3/8" | 1/2" | 53 | |
| LKPG4001Z MS | CAJ9480Z | ★ | 3/4 | 955 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 35 | 3/8" | 1/2" | 63 | |
| LKPG4001Z MS | CAJ9510Z | ★ | 1 | 1181 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 36 | 3/8" | 5/8" | 65 | |
| LKPG4001Z MS | TAJ4519Z | ★ | 1.5 | 2246 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 41 | 3/8" | 5/8" | 85 | |
| LKPG4001Z MS | TFH4524Z | ★ | 2 | 2337 | 1x400 | 3390 | 6 | ★ | 160 | 0.75 | 42 | 3/8" | 5/8" | 90 | |
| LKPG4001Z MS | ZB15KQE-TFD | ★ | 2 | 1550 | 1x400 | 3390 | 6 | ★ | 160 | 0.75 | 40 | 3/8" | 3/4" | 83 | |
| LKPG4501Z MS | ZB19KQH-TFD | ★ | 2.5 | 1860 | 1x450 | 4560 | 6 | ★ | 200 | 0.91 | 40 | 3/8" | 7/8" | 88 | |
| LKPG4501Z MS | TFH4540Z | ★ | 3 | 3943 | 1x450 | 4310 | 6 | ★ | 200 | 0.91 | 48 | 3/8" | 7/8" | 108 | |
| LKPG4501Z MS | ZB21KQE-TFD | ★ | 3 | 22 20 | 1x450 | 4310 | 6 | ★ | 200 | 0.91 | 43 | 3/8" | 7/8" | 103 | |
| LKPG4501Z MS | ZB26KOH-TFD | ★ | 3.5 | 2610 | 1x450 | 4070 | 6 | ★ | 200 | 0.91 | 44 | 1/2" | 7/8" | 106 | |
| LKPG4502Z MS | TAG4546Z | ★ | 4 | 4125 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 52 | 1/2" | 7/8" | 126 | |
| LKPG4502Z MS | ZB29KQE-TFD | ★ | 4 | 2950 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 47 | 1/2" | 7/8" | 120 | |
| LKPG4502Z MS | TAG4561Z | ★ | 5 | 5362 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 52 | 1/2" | 7/8" | 141 | |
| LKPG4502Z MS | ZB38KQE-TKD | ★ | 5 | 3760 | 2x450 | 7990 | 6 | ★ | 400 | I.82 | 47 | 1/2" | 7/8" | 135 | |
| LKPG4502Z MS | TAG4568Z | ★ | 3 | 5916 | 2x450 | 8010 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 148 | |
| LKPG4502Z MS | ZB45KQE-TFD | ★ | 6 | 4280 | 2x450 | 8010 | 6 | ★ | 400 | 1.82 | 48 | 1/2" | 7/8" | 142 | |
| LKPG4502Z MS | TACJ4573Z | ★ | 7 | 6706 | 2x450 | 7530 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 155 | |
| LKPG4502Z MS | ZB48KQE-TFD | ★ | 7 | 4631 | 2x450 | 7530 | 6 | ★ | 400 | 1.82 | 48 | 1/2" | 7/8" | 148 | |
| MBP K404A | ComPrcssor | Axial Fan Motor | sonitus | Pipe Fittings | N.W. | ||||||||||
| Exemplar | 220/1/50 | 380/3/50 | Hp | W | N⁰X∅ | M³/h | Poloni | 220/1/50 | effusio | dis=10m | D | S | Kg | ||
| Code | W | A | dba | mm | mm | ||||||||||
| LKPC 4001Z LS | CAE2420Z | ★ |
| 1/2 | 479 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 31 | 3/8" | 1/2" | 52 |
| LKPG 4001Z LS | CAJ2432Z | ★ |
| 3/4 | 602 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 34 | 3/8" | 1/2" | 62 |
| LKPG 4001Z LS | CAJ2446Z | ★ |
| 1 | 886 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 38 | 3/8" | 5/8" | 64 |
| LKPG 4001Z LT | TAJ2464Z |
| ★ | 1.5 | 1199 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 40 | 3/8" | 5/8" | 65 |
| LKPG 4001Z LT | TFIH2480Z |
| ★ | 2 | 1553 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 41 | 3/8" | 5/8" | 88 |
| LKPG4001Z LT | TFH2511Z |
| ★ | 3 | 2058 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 42 | 3/8" | 7/8" | 90 |
| LKPG 4501Z LT | TAC2516Z |
| ★ | 4 | 3106 | 1x450 | 4560 | 6 | ★ | 200 | 0.91 | 45 | 1/2" | 7/8" | 116 |
| LKPG 4501Z LT | TAG2522Z |
| ★ | 6 | 4111 | 1x450 | 8430 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 143 |
| MBP R404A | Compressor | Euismod(w) | |||||
| Temperatus evaporationem (℃) | |||||||
| Code | 5℃ | 0℃ | -5℃ | -10℃ | -15℃ | -20℃ | |
| LKPG 4001Z MS | CAE9460Z | 1366 | 1141 | 908 | 711 | 546 | 409 |
| LKPG 4001Z MS | CAJ9480Z | 1795 | 1607 | 1284 | 1009 | 774 | 571 |
| LKPG 4001Z MS | CAJ9510Z | 2194 | 1972 | 1583 | 1252 | 970 | 732 |
| LKPG 4001Z MT | TAJ4519Z | 4170 | 3756 | 3009 | 2353 | 1739 |
|
| LKPG 4001Z MT | TFH4524Z | 4997 | 4249 | 3395 | 2639 | 1964 |
|
| LKPG 4001Z MT | ZB15KQE-TFD | 5150 | 4350 | 3600 | 2950 | 2370 | 1840 |
| LKPG 4501Z MT | ZB19KQE-TFD | 6450 | 5450 | 4550 | 3750 | 3100 | 2540 |
| LKPG 4501Z MT | TFH4540Z | 8082 | 6912 | 5635 | 4486 | 3445 |
|
| LKPG 4501Z MT | ZB21KQE-TFD | 7800 | 6550 | 5500 | 4550 | 3750 | 3100 |
| LKPG 4501Z MT | ZB26KQE-TFD | 9100 | 7650 | 6400 | 5300 | 4350 | 3550 |
| LKPG 4502Z MT | TAG4546Z | 9326 | 7867 | 6134 | 4646 | 3370 |
|
| LKPG 4502Z MT | ZB29KQE-TFD | 10570 | 8910 | 7460 | 6210 | 5420 | 3800 |
| LKPG 4502Z MT | TAG4561Z | 11700 | 9953 | 7914 | 6133 | 4560 |
|
| LKPG 4502Z MT | ZB38KQE-TFD | 13300 | 11200 | 9350 | 7759 | 6350 | 5200 |
| LKPG 4502Z MT | TAG4568Z | 13986 | 11787 | 9463 | 7429 | 5639 |
|
| LKPG 4502Z MT | ZB45KQE-TFD | 15600 | 13100 | 10950 | 9100 | 7500 | 6150 |
| LKPG 4502Z MT | TAG4573Z | 14735 | 12567 | 10122 | 8000 | 6155 |
|
| LKPG 4502Z MT | ZB48KQB-TFD | 17070 | 14390 | 12050 | 10020 | 8260 | 6730 |
| LBP R404A | Compressor | Euismod(w) | |||||
| Temperature evanescente (C) | |||||||
| Code |
| -10℃ | -15℃ | -20℃ | -25℃ | -30℃ | -35℃ |
| LKPG 4001Z LS | CAH2420Z | 1047 | 836 | 654 | 547 | 357 | 232 |
| LKPG 4001Z LS | CAJ2432Z | 1560 | 1227 | 950 | 792 | 510 | 318 |
| LKPG 4001Z LS | CAJ2446Z | 2290 | 1821 | 1423 | 1194 | 797 | 549 |
| LKPG 4001Z LT | TAJ2464Z | 3012 | 2412 | 1902 | 1605 | 1076 | 723 |
| LKPG 4001Z LT | TFH2480Z | 4419 | 3476 | 2662 | 2183 | 1319 | 738 |
| LKPG 4001Z LT | TFH2511Z | 6222 | 4931 | 3796 | 3135 | 2016 | 1380 |
| LKPG 4501Z LT | TAG2516Z | 8839 | 6952 | 5324 | 4367 | 2638 | 1475 |
| LKPG 4501Z LT | TAG2522Z | 12444 | 9861 | 7592 | 6270 | 4031 | 2760 |

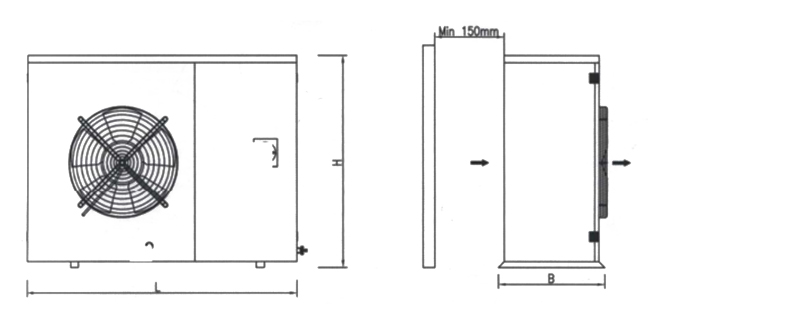

| Code | Condensans unitas dimensionum | ||
| L(mm) | B(mm) | H(mm) | |
| LKPG 4001... | 800 | 380 | 660 |
| LKPG 4501. | 1050 | 380 | 840 |
| LKPG 4502. | 1050 | 380 | 1240 |

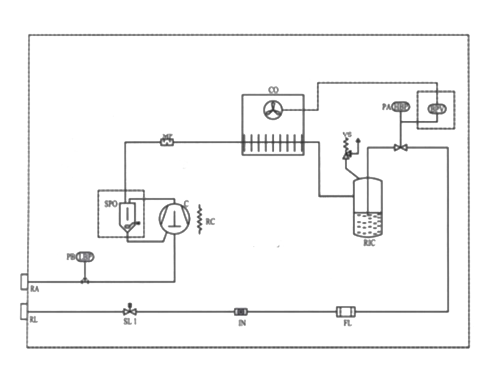

CO=Condenser
C = Compressor
RIC = Liquid accipientis
RL Liquid-off valvo
RA = Suctionis clausa longe valvae
PA = High pressura switch
PB = Minimum pressura switch
FL = Siccior filter
SL1 = valvae Liquid solenoid
IN=Sight glass
VS = Impetus subsidio valvae
RC = Crankcase calefacientis
MF = Muffler
SPO = Oleum Separator (libitum)
BPV=Condenser fan celeritate variatione (libitum)
De Us
Taizhou Optimus Refrigeratio Equipment Vestibulum Co., Ltd
Taizhou Optimus Refrigeratio Vestibulum Co., Ltd. instituta sunt in 2009. Sunt professionales OEM Medium And Low Temperature Commercial Refrigeration Condensing Unitates venditores et
ODM Medium And Low Temperature Commercial Refrigeration Condensing Unitates officina apud Sinas. Post annos innovationis productionis, refrigeratio turmarum densantium, coolers aeris, et condensatores massam productionis plus quam 1/4 ad 100 unitates refrigerationis horsepotentiae formaverunt.
Praesertim cum constitutio "Refrigeration Unitae R&D Testing Centre", qualitas producta adhuc emendata est et CE, ROHS, et aliae certificaciones in unum eunt. Producta nostra in varias orbis partes exportantur et procuratores in magnis urbibus Sinarum habemus.
Testimonium Honoris
News
-
Suscipio qualitas et salus corruptibilibus bonis est a discrimine spectat in industria vndique a pharmaceuticals ad cibum repono. Unum ex maxime ef...
READ MORE -
Minimum sonitus gradu evaporator aer conditioners, ut Minimum sonitus evaporator aer Conditioner , Bractiones significant beneficia ut tam r...
READ MORE -
Efficiens calor dissipatio est fundamentalis postulationem in omni refrigeration system, praesertim per apicem operationem cum scelerisque onerat s...
READ MORE -
Discriptis dextram refrigerationem ratio est crucial pro maintaining efficientiam et reliability in commercial refrigerationem applications. In ...
READ MORE
Medium And Low Temperature Commercial Refrigeration Condensing Unitates Industry knowledge
1. Industria Overview
Medium et humilis temperatus refrigerationis commercialis unitates densantes partes essentiales sunt in partibus cibi servitii, grossi et industrialis. Hae unitates ordinantur ad optimalem temperiem condiciones pro caducis bonis conservandas, ut productum qualitatem et salutem obtineant. Late adhibentur in applicationibus sicut superinstitorii, commoda promptuarium, popinae, et facultates repono frigoris.
2. Forum Demand
- Cibus Salutis signa augendae : Ascensus conscientia cibi salutis et hygiene ad altiorem postulatum perduxit ad certa refrigerationis systemata quae requiritur temperaturas constanter conservare possunt.
- Incrementum Cibus Service Industry : Expansio popinae, casuum, ac officia obsonandi necessitatem impellit ad solutiones efficaces refrigerationis ad conservandam qualitatem cibi et fasciae vitae extendendae.
- Energy Efficiency Ordinationes : Strictiora energiae efficientiae normas suggerunt negotia ad collocandum in recentioribus systematibus refrigerationis quae energiam consumendi et sumptibus operationis minuunt.
3. Product Features
- Temperature Range : Mediae temperaturae unitates typice agunt inter 0°C ad 7°C (32°F ad 45°F), dum unitates temperaturae humilis infra 0°C (32°F) operantur, aptas ad varias applicationes faciens, incluso cibo congelato .
- Compressor Technologies Hae unitates saepe utuntur technologiae compressoris progressae, ut volumen, reciprocum, seu compressores cochleae, quae efficientiam et fidem augent.
- Versatility : Condensantes unitates nativus ad applicationes specificas necessarias occurrere potest, inclusis diversis refrigerantibus et optionibus moderandis.
4. Auctor Analysis
- Clavis Histriones : Mercatus plures artifices maiores, ut Copeland, Bitzer, Portitorem et Tecumseh comprehendit, singulas rationes pro instrumentis mediae et infimis temperaturis formandis varias offerunt.
- Forum trends : Crescens inclinatio est ad refrigerantes et technologias oeco-amicas quae praeceptis environmental obtemperant, quae optiones dolorum influentias ac decisiones acquirendi.
5. Future Development Trends
- Innovationes technologicae : Compressores et callidi celeritatis variae introductio systemata temperantia augebit industriam efficientiam et stabilitatem temperatam, praebens necessitates utentium evolventium.
- Sustineri Initiatives : refrigeration industria movens ad usum refrigerantium naturalium et de industria efficientis consilia ad proposita sustinenda et reducenda emissiones gas CONSERVATORIUM.
- Integration cum IoT : Adoptio technologiae IoT in refrigerationis unitates efficientiam remotam vigilantiam, predictive sustentationem, et efficientiam perficiendi melioris, negotia adiuvans magna downtime.
