Product Series

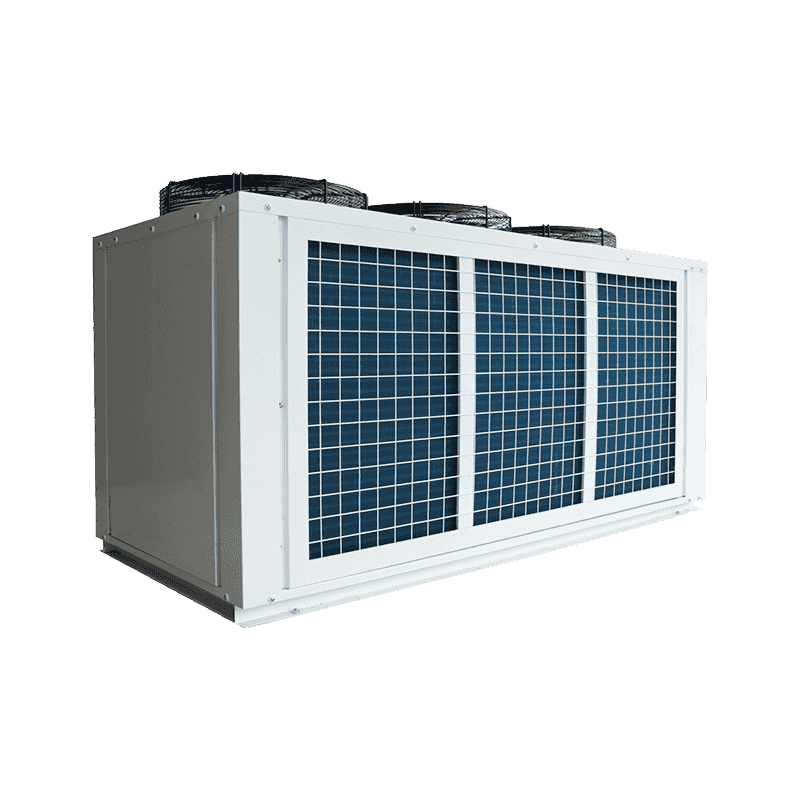

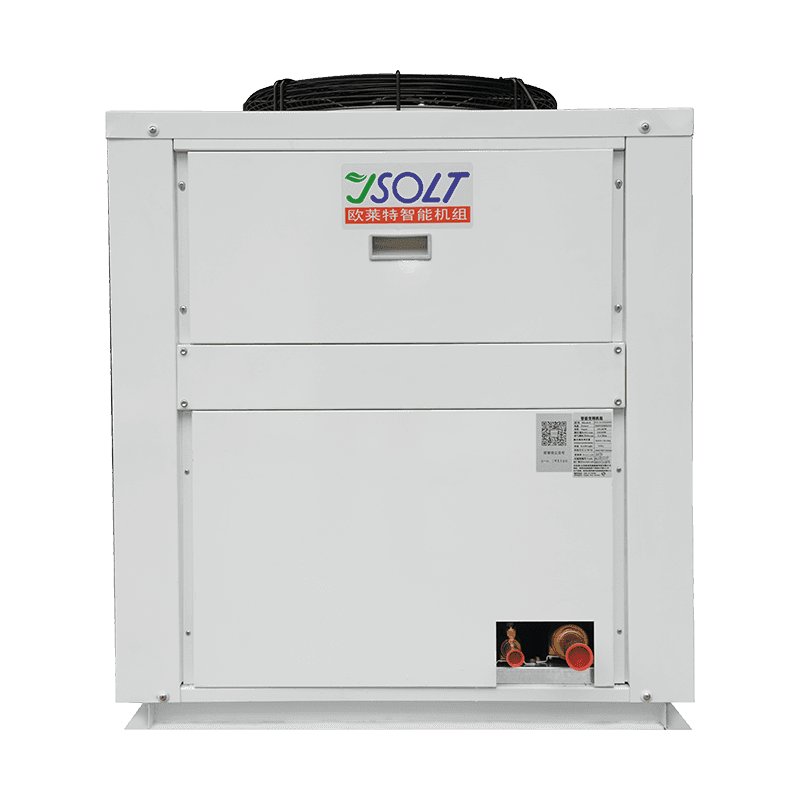

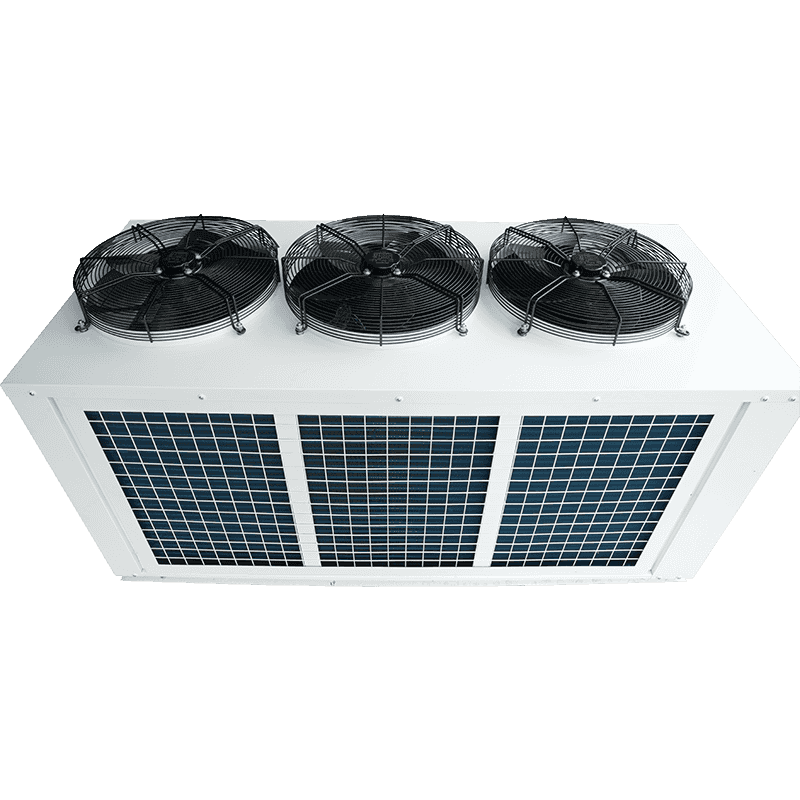

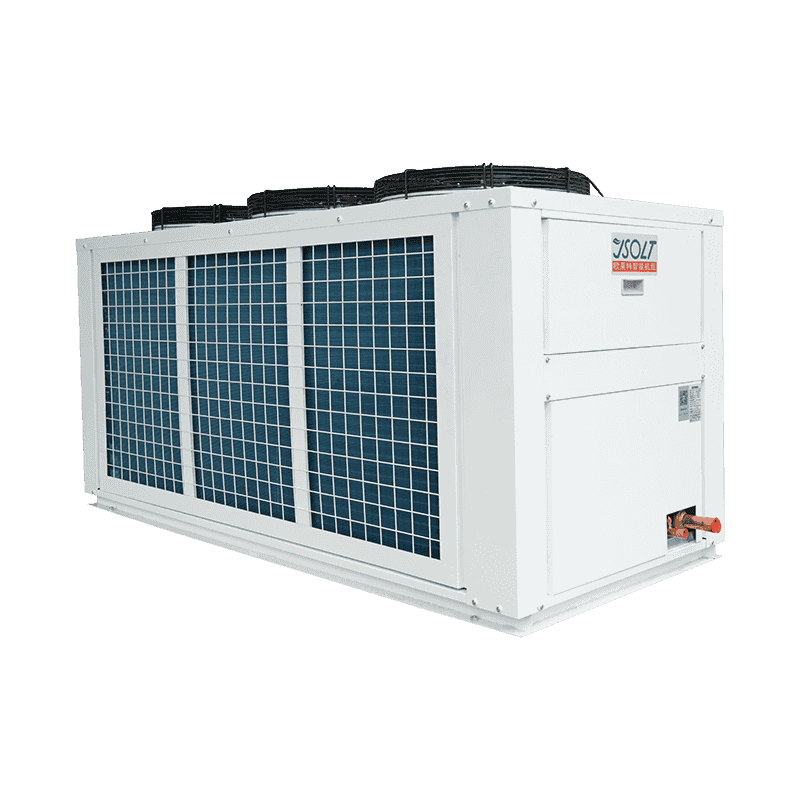

XX equi Commercial Condensing Unitates
Features:
Condensatio unitatis LKPG range ad refrigerationem commercialem in mediis et infimis temperaturis destinatur.
Specialiter designatur cum condensatore tropico, et operatione humili soni.
facilem sustentationem, optimas partes praestare finalis qualitatis imperium.
omnes unitates densantes cum ordinatione CE&ROHS sunt.
Accessiones:
* Potestas iactaret cadmiam laminam cum magno corrosione viribus
*Tropical condenser coil in tubo cupreo et aluminio pinnae
* Sana velit
* Hermeticum volumen seu reciproco compressor
* Crankcase calefacientis
* Dural pressura switch latis reset
* Solinoid valvae in liquida linea
* Filter siccior in liquida linea
* Visus vitrum cum humore indicator
* Liquida recipientis
* Salus valvae subsidio
* Claudite valvulae pro linea liquida et suctu.
Libitum items:
* Inaedificata electrica imperium panel
* Fan celeritas controller secundum condenser pressura
* Oleum separator
*Diversa voltage & gas
- Product Description
+86-1882061600
Exemplar partitio:
LKPG 4001Z MS
S: unum tempus (T: tres tempus)
M: media & caliditas (L: frigiditas)
R404A
FanФ(mm)"N⁰
series
| MBP K404A | Compressor | Axial Fan Motor | sonitus | Pipe Fittings | N.W. | ||||||||||
| Exemplar | 220/1/50 | 380/3/50 | Hp | W | N⁰X∅ | M³/h | Poloni | 220/1/50 | effusio | dist=10m | D | S | Kr | ||
| Code | W | A | dba | mm | mm | ||||||||||
| LKPG4001Z MS | CAE9460Z | ★ | 1/2 | 697 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 33 | 3/8" | 1/2" | 53 | |
| LKPG4001Z MS | CAJ9480Z | ★ | 3/4 | 955 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 35 | 3/8" | 1/2" | 63 | |
| LKPG4001Z MS | CAJ9510Z | ★ | 1 | 1181 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 36 | 3/8" | 5/8" | 65 | |
| LKPG4001Z MS | TAJ4519Z | ★ | 1.5 | 2246 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 41 | 3/8" | 5/8" | 85 | |
| LKPG4001Z MS | TFH4524Z | ★ | 2 | 2337 | 1x400 | 3390 | 6 | ★ | 160 | 0.75 | 42 | 3/8" | 5/8" | 90 | |
| LKPG4001Z MS | ZB15KQE-TFD | ★ | 2 | 1550 | 1x400 | 3390 | 6 | ★ | 160 | 0.75 | 40 | 3/8" | 3/4" | 83 | |
| LKPG4501Z MS | ZB19KQH-TFD | ★ | 2.5 | 1860 | 1x450 | 4560 | 6 | ★ | 200 | 0.91 | 40 | 3/8" | 7/8" | 88 | |
| LKPG4501Z MS | TFH4540Z | ★ | 3 | 3943 | 1x450 | 4310 | 6 | ★ | 200 | 0.91 | 48 | 3/8" | 7/8" | 108 | |
| LKPG4501Z MS | ZB21KQE-TFD | ★ | 3 | 22 20 | 1x450 | 4310 | 6 | ★ | 200 | 0.91 | 43 | 3/8" | 7/8" | 103 | |
| LKPG4501Z MS | ZB26KOH-TFD | ★ | 3.5 | 2610 | 1x450 | 4070 | 6 | ★ | 200 | 0.91 | 44 | 1/2" | 7/8" | 106 | |
| LKPG4502Z MS | TAG4546Z | ★ | 4 | 4125 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 52 | 1/2" | 7/8" | 126 | |
| LKPG4502Z MS | ZB29KQE-TFD | ★ | 4 | 2950 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 47 | 1/2" | 7/8" | 120 | |
| LKPG4502Z MS | TAG4561Z | ★ | 5 | 5362 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 52 | 1/2" | 7/8" | 141 | |
| LKPG4502Z MS | ZB38KQE-TKD | ★ | 5 | 3760 | 2x450 | 7990 | 6 | ★ | 400 | I.82 | 47 | 1/2" | 7/8" | 135 | |
| LKPG4502Z MS | TAG4568Z | ★ | 3 | 5916 | 2x450 | 8010 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 148 | |
| LKPG4502Z MS | ZB45KQE-TFD | ★ | 6 | 4280 | 2x450 | 8010 | 6 | ★ | 400 | 1.82 | 48 | 1/2" | 7/8" | 142 | |
| LKPG4502Z MS | TACJ4573Z | ★ | 7 | 6706 | 2x450 | 7530 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 155 | |
| LKPG4502Z MS | ZB48KQE-TFD | ★ | 7 | 4631 | 2x450 | 7530 | 6 | ★ | 400 | 1.82 | 48 | 1/2" | 7/8" | 148 | |
| MBP K404A | ComPrcssor | Axial Fan Motor | sonitus | Pipe Fittings | N.W. | ||||||||||
| Exemplar | 220/1/50 | 380/3/50 | Hp | W | N⁰X∅ | M³/h | Poloni | 220/1/50 | effusio | dis=10m | D | S | Kg | ||
| Code | W | A | dba | mm | mm | ||||||||||
| LKPC 4001Z LS | CAE2420Z | ★ |
| 1/2 | 479 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 31 | 3/8" | 1/2" | 52 |
| LKPG 4001Z LS | CAJ2432Z | ★ |
| 3/4 | 602 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 34 | 3/8" | 1/2" | 62 |
| LKPG 4001Z LS | CAJ2446Z | ★ |
| 1 | 886 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 38 | 3/8" | 5/8" | 64 |
| LKPG 4001Z LT | TAJ2464Z |
| ★ | 1.5 | 1199 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 40 | 3/8" | 5/8" | 65 |
| LKPG 4001Z LT | TFIH2480Z |
| ★ | 2 | 1553 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 41 | 3/8" | 5/8" | 88 |
| LKPG4001Z LT | TFH2511Z |
| ★ | 3 | 2058 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 42 | 3/8" | 7/8" | 90 |
| LKPG 4501Z LT | TAC2516Z |
| ★ | 4 | 3106 | 1x450 | 4560 | 6 | ★ | 200 | 0.91 | 45 | 1/2" | 7/8" | 116 |
| LKPG 4501Z LT | TAG2522Z |
| ★ | 6 | 4111 | 1x450 | 8430 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 143 |
| MBP R404A | Compressor | Euismod(w) | |||||
| Temperatus evaporationem (℃) | |||||||
| Code | 5℃ | 0℃ | -5℃ | -10℃ | -15℃ | -20℃ | |
| LKPG 4001Z MS | CAE9460Z | 1366 | 1141 | 908 | 711 | 546 | 409 |
| LKPG 4001Z MS | CAJ9480Z | 1795 | 1607 | 1284 | 1009 | 774 | 571 |
| LKPG 4001Z MS | CAJ9510Z | 2194 | 1972 | 1583 | 1252 | 970 | 732 |
| LKPG 4001Z MT | TAJ4519Z | 4170 | 3756 | 3009 | 2353 | 1739 |
|
| LKPG 4001Z MT | TFH4524Z | 4997 | 4249 | 3395 | 2639 | 1964 |
|
| LKPG 4001Z MT | ZB15KQE-TFD | 5150 | 4350 | 3600 | 2950 | 2370 | 1840 |
| LKPG 4501Z MT | ZB19KQE-TFD | 6450 | 5450 | 4550 | 3750 | 3100 | 2540 |
| LKPG 4501Z MT | TFH4540Z | 8082 | 6912 | 5635 | 4486 | 3445 |
|
| LKPG 4501Z MT | ZB21KQE-TFD | 7800 | 6550 | 5500 | 4550 | 3750 | 3100 |
| LKPG 4501Z MT | ZB26KQE-TFD | 9100 | 7650 | 6400 | 5300 | 4350 | 3550 |
| LKPG 4502Z MT | TAG4546Z | 9326 | 7867 | 6134 | 4646 | 3370 |
|
| LKPG 4502Z MT | ZB29KQE-TFD | 10570 | 8910 | 7460 | 6210 | 5420 | 3800 |
| LKPG 4502Z MT | TAG4561Z | 11700 | 9953 | 7914 | 6133 | 4560 |
|
| LKPG 4502Z MT | ZB38KQE-TFD | 13300 | 11200 | 9350 | 7759 | 6350 | 5200 |
| LKPG 4502Z MT | TAG4568Z | 13986 | 11787 | 9463 | 7429 | 5639 |
|
| LKPG 4502Z MT | ZB45KQE-TFD | 15600 | 13100 | 10950 | 9100 | 7500 | 6150 |
| LKPG 4502Z MT | TAG4573Z | 14735 | 12567 | 10122 | 8000 | 6155 |
|
| LKPG 4502Z MT | ZB48KQB-TFD | 17070 | 14390 | 12050 | 10020 | 8260 | 6730 |
| LBP R404A | Compressor | Euismod(w) | |||||
| Temperature evanescente (C) | |||||||
| Code |
| -10℃ | -15℃ | -20℃ | -25℃ | -30℃ | -35℃ |
| LKPG 4001Z LS | CAH2420Z | 1047 | 836 | 654 | 547 | 357 | 232 |
| LKPG 4001Z LS | CAJ2432Z | 1560 | 1227 | 950 | 792 | 510 | 318 |
| LKPG 4001Z LS | CAJ2446Z | 2290 | 1821 | 1423 | 1194 | 797 | 549 |
| LKPG 4001Z LT | TAJ2464Z | 3012 | 2412 | 1902 | 1605 | 1076 | 723 |
| LKPG 4001Z LT | TFH2480Z | 4419 | 3476 | 2662 | 2183 | 1319 | 738 |
| LKPG 4001Z LT | TFH2511Z | 6222 | 4931 | 3796 | 3135 | 2016 | 1380 |
| LKPG 4501Z LT | TAG2516Z | 8839 | 6952 | 5324 | 4367 | 2638 | 1475 |
| LKPG 4501Z LT | TAG2522Z | 12444 | 9861 | 7592 | 6270 | 4031 | 2760 |
| Code | Condensans unitas dimensionum | ||
| L(mm) | B(mm) | H(mm) | |
| LKPG 4001... | 800 | 380 | 660 |
| LKPG 4501. | 1050 | 380 | 840 |
| LKPG 4502. | 1050 | 380 | 1240 |
CO=Condenser
C = Compressor
RIC = Liquid accipientis
RL Liquid-off valvo
RA = Suctionis clausa longe valvae
PA = High pressura switch
PB = Minimum pressura switch
FL = Siccior filter
SL1 = valvae Liquid solenoid
IN=Sight glass
VS = Impetus subsidio valvae
RC = Crankcase calefacientis
MF = Muffler
SPO = Oleum Separator (libitum)
BPV=Condenser fan celeritate variatione (libitum)
De Us
Taizhou Optimus Refrigeratio Equipment Vestibulum Co., Ltd
Taizhou Optimus Refrigeratio Vestibulum Co., Ltd. instituta sunt in 2009. Sunt professionales OEM XX equi Commercial Condensing Unitates venditores et
ODM XX equi Commercial Condensing Unitates officina apud Sinas. Post annos innovationis productionis, refrigeratio turmarum densantium, coolers aeris, et condensatores massam productionis plus quam 1/4 ad 100 unitates refrigerationis horsepotentiae formaverunt.
Praesertim cum constitutio "Refrigeration Unitae R&D Testing Centre", qualitas producta adhuc emendata est et CE, ROHS, et aliae certificaciones in unum eunt. Producta nostra in varias orbis partes exportantur et procuratores in magnis urbibus Sinarum habemus.
Testimonium Honoris
News
-
Suscipio qualitas et salus corruptibilibus bonis est a discrimine spectat in industria vndique a pharmaceuticals ad cibum repono. Unum ex maxime ef...
READ MORE -
Minimum sonitus gradu evaporator aer conditioners, ut Minimum sonitus evaporator aer Conditioner , Bractiones significant beneficia ut tam r...
READ MORE -
Efficiens calor dissipatio est fundamentalis postulationem in omni refrigeration system, praesertim per apicem operationem cum scelerisque onerat s...
READ MORE -
Discriptis dextram refrigerationem ratio est crucial pro maintaining efficientiam et reliability in commercial refrigerationem applications. In ...
READ MORE
XX equi Commercial Condensing Unitates Industry knowledge
Overview
1. Industry Overview
Horsepower XX (HP) unitates commercial densantes systemata refrigerationis robusta in maioribus applicationibus commercialibus communiter adhibitis, sicut in mercatu, facultates frigidae repositae, et cibi processus plantae. Hae unitates ordinantur ad onera substantialia refrigeranda tractanda, apta ad ferendum ferendum quae refrigerationem efficientem et certam requirunt.
2. Market Press
Crescens Refrigeratio Commercial Necessitatibus: Cum cibus et potus industriam auget, magna postulatio est summus capacitatis refrigerationis systemata quae constantes temperamenta pro bonis caducis conservare possunt.
Energy Efficiency Requisita: Energia energiae et pressurae moderatrices agentes negotia ad solutiones energiae efficientes quaerendas quae operandi expensas inferiores dum exigentia refrigerationis occurrentes sunt.
Cibus Salutis Ordinationes: Strictiores cibum salutis signa necessaria utilia refrigerationis systemata ut obsequium et productum qualitatem tueatur.
3. Product Features
High Cooling Capacity: Cum XX HP rating, hae densandi unitates possunt praebere vim significantem refrigerandi, aptas ad ampliores applicationes refrigerationis faciendas.
Compressor Technologia: Compressor technologiae provectae saepe utetur, incluso volumine vel compressori semi-hermetico, notae propter efficientiam et fidem.
Configurationes customizabiles: hae unitates ad certas applicationes necessitates formari possunt, inclusa varia refrigerantia, commutatores caloris et systemata temperantia.
4. Auctor Analysis
Maiores artifices: Key lusores in foro comprehendunt Copeland, Bitzer, Portitorem et Danfoss, quae varias condensationes signa praebent applicationes ad refrigerationem commercialem destinatae.
Forum trends: Certamen augens inter artifices progressus in technologiam duxit, positus in industria efficientiae, effectus et sustineri environmental.
5. Future Development Trends
Firmamentum Focus: Industria inclinatio est ad usum refrigerantium naturalium et technologiarum oeconomicarum ad occurrendum normas environmental et exspectationes consumendi.
Integration of Smart Technologies: Incorporatio IoT solutionum permittet pro tempore reali vigilantia, predictive conservatione, ac energiae auctae administrationis operationis augendae.
Energy Efficiency amplificata: Innovationes in consilio compressore et optimizatione systematis activitates densandi augere perget, reducendo altiore operativa costs.
