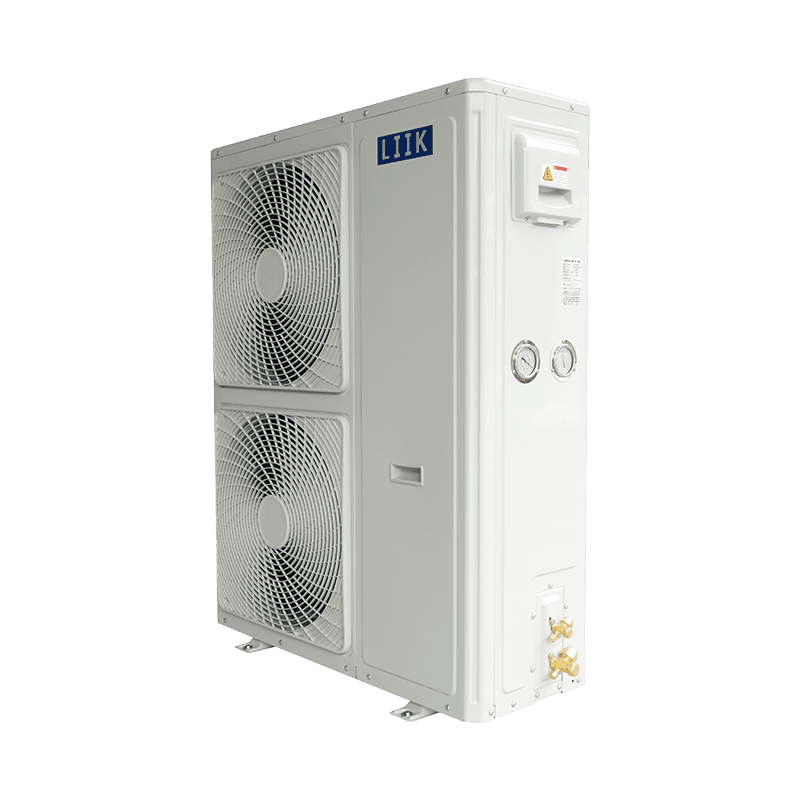

Humilis Sonitus plene Compressio Condensing Unit
Features:
Condensatio unitatis LKPG range ad refrigerationem commercialem in mediis et infimis temperaturis destinatur.
Specialiter designatur cum condensatore tropico, et operatione humili soni.
facilem sustentationem, optimas partes praestare finalis qualitatis imperium.
omnes unitates densantes cum ordinatione CE&ROHS sunt.
Accessiones:
* Virtus iactaret cadmiam laminam cum magno corrosione viribus
*Tropical condenser coil in tubo cupreo et aluminio pinnae
* Sana velit
* Hermeticum volumen seu reciproco compressor
* Crankcase calefacientis
* Dural pressura switch latis reset
* Solinoid valvae in liquida linea
* Filter siccior in liquida linea
* Visus vitrum cum humore indicator
* Liquida recipientis
* Salus valvae subsidio
* Claudite valvulae pro linea liquida et suctu.
Libitum items:
* Inaedificata electrica imperium panel
* Fan celeritas controller secundum condenser pressura
* Oleum separator
*Diversi voltage & gas
- Product Description
+86-1882061600
Exemplar partitio:
LKPG 4001Z MS
S: unum tempus (T: tres tempus)
M: media & caliditas (L: frigiditas)
R404A
FanФ(mm)"N⁰
series
| MBP K404A | Compressor | Axial Fan Motor | sonitus | Pipe Fittings | N.W. | ||||||||||
| Exemplar | 220/1/50 | 380/3/50 | Hp | W | N⁰X∅ | M³/h | Poloni | 220/1/50 | effusio | dist=10m | D | S | Kr | ||
| Code | W | A | dba | mm | mm | ||||||||||
| LKPG4001Z MS | CAE9460Z | ★ | 1/2 | 697 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 33 | 3/8" | 1/2" | 53 | |
| LKPG4001Z MS | CAJ9480Z | ★ | 3/4 | 955 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 35 | 3/8" | 1/2" | 63 | |
| LKPG4001Z MS | CAJ9510Z | ★ | 1 | 1181 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 36 | 3/8" | 5/8" | 65 | |
| LKPG4001Z MS | TAJ4519Z | ★ | 1.5 | 2246 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 41 | 3/8" | 5/8" | 85 | |
| LKPG4001Z MS | TFH4524Z | ★ | 2 | 2337 | 1x400 | 3390 | 6 | ★ | 160 | 0.75 | 42 | 3/8" | 5/8" | 90 | |
| LKPG4001Z MS | ZB15KQE-TFD | ★ | 2 | 1550 | 1x400 | 3390 | 6 | ★ | 160 | 0.75 | 40 | 3/8" | 3/4" | 83 | |
| LKPG4501Z MS | ZB19KQH-TFD | ★ | 2.5 | 1860 | 1x450 | 4560 | 6 | ★ | 200 | 0.91 | 40 | 3/8" | 7/8" | 88 | |
| LKPG4501Z MS | TFH4540Z | ★ | 3 | 3943 | 1x450 | 4310 | 6 | ★ | 200 | 0.91 | 48 | 3/8" | 7/8" | 108 | |
| LKPG4501Z MS | ZB21KQE-TFD | ★ | 3 | 22 20 | 1x450 | 4310 | 6 | ★ | 200 | 0.91 | 43 | 3/8" | 7/8" | 103 | |
| LKPG4501Z MS | ZB26KOH-TFD | ★ | 3.5 | 2610 | 1x450 | 4070 | 6 | ★ | 200 | 0.91 | 44 | 1/2" | 7/8" | 106 | |
| LKPG4502Z MS | TAG4546Z | ★ | 4 | 4125 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 52 | 1/2" | 7/8" | 126 | |
| LKPG4502Z MS | ZB29KQE-TFD | ★ | 4 | 2950 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 47 | 1/2" | 7/8" | 120 | |
| LKPG4502Z MS | TAG4561Z | ★ | 5 | 5362 | 2x450 | 8430 | 6 | ★ | 400 | 1.82 | 52 | 1/2" | 7/8" | 141 | |
| LKPG4502Z MS | ZB38KQE-TKD | ★ | 5 | 3760 | 2x450 | 7990 | 6 | ★ | 400 | I.82 | 47 | 1/2" | 7/8" | 135 | |
| LKPG4502Z MS | TAG4568Z | ★ | 3 | 5916 | 2x450 | 8010 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 148 | |
| LKPG4502Z MS | ZB45KQE-TFD | ★ | 6 | 4280 | 2x450 | 8010 | 6 | ★ | 400 | 1.82 | 48 | 1/2" | 7/8" | 142 | |
| LKPG4502Z MS | TACJ4573Z | ★ | 7 | 6706 | 2x450 | 7530 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 155 | |
| LKPG4502Z MS | ZB48KQE-TFD | ★ | 7 | 4631 | 2x450 | 7530 | 6 | ★ | 400 | 1.82 | 48 | 1/2" | 7/8" | 148 | |
| MBP K404A | ComPrcssor | Axial Fan Motor | sonitus | Pipe Fittings | N.W. | ||||||||||
| Exemplar | 220/1/50 | 380/3/50 | Hp | W | N⁰X∅ | M³/h | Poloni | 220/1/50 | effusio | dis=10m | D | S | Kg | ||
| Code | W | A | dba | mm | mm | ||||||||||
| LKPC 4001Z LS | CAE2420Z | ★ |
| 1/2 | 479 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 31 | 3/8" | 1/2" | 52 |
| LKPG 4001Z LS | CAJ2432Z | ★ |
| 3/4 | 602 | 1x400 | 2570 | 6 | ★ | 120 | 0.56 | 34 | 3/8" | 1/2" | 62 |
| LKPG 4001Z LS | CAJ2446Z | ★ |
| 1 | 886 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 38 | 3/8" | 5/8" | 64 |
| LKPG 4001Z LT | TAJ2464Z |
| ★ | 1.5 | 1199 | 1x400 | 2250 | 6 | ★ | 120 | 0.56 | 40 | 3/8" | 5/8" | 65 |
| LKPG 4001Z LT | TFIH2480Z |
| ★ | 2 | 1553 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 41 | 3/8" | 5/8" | 88 |
| LKPG4001Z LT | TFH2511Z |
| ★ | 3 | 2058 | 1x400 | 3590 | 6 | ★ | 160 | 0.75 | 42 | 3/8" | 7/8" | 90 |
| LKPG 4501Z LT | TAC2516Z |
| ★ | 4 | 3106 | 1x450 | 4560 | 6 | ★ | 200 | 0.91 | 45 | 1/2" | 7/8" | 116 |
| LKPG 4501Z LT | TAG2522Z |
| ★ | 6 | 4111 | 1x450 | 8430 | 6 | ★ | 400 | 1.82 | 53 | 1/2" | 7/8" | 143 |
| MBP R404A | Compressor | Euismod(w) | |||||
| Temperatus evaporationem (℃) | |||||||
| Code | 5℃ | 0℃ | -5℃ | -10℃ | -15℃ | -20℃ | |
| LKPG 4001Z MS | CAE9460Z | 1366 | 1141 | 908 | 711 | 546 | 409 |
| LKPG 4001Z MS | CAJ9480Z | 1795 | 1607 | 1284 | 1009 | 774 | 571 |
| LKPG 4001Z MS | CAJ9510Z | 2194 | 1972 | 1583 | 1252 | 970 | 732 |
| LKPG 4001Z MT | TAJ4519Z | 4170 | 3756 | 3009 | 2353 | 1739 |
|
| LKPG 4001Z MT | TFH4524Z | 4997 | 4249 | 3395 | 2639 | 1964 |
|
| LKPG 4001Z MT | ZB15KQE-TFD | 5150 | 4350 | 3600 | 2950 | 2370 | 1840 |
| LKPG 4501Z MT | ZB19KQE-TFD | 6450 | 5450 | 4550 | 3750 | 3100 | 2540 |
| LKPG 4501Z MT | TFH4540Z | 8082 | 6912 | 5635 | 4486 | 3445 |
|
| LKPG 4501Z MT | ZB21KQE-TFD | 7800 | 6550 | 5500 | 4550 | 3750 | 3100 |
| LKPG 4501Z MT | ZB26KQE-TFD | 9100 | 7650 | 6400 | 5300 | 4350 | 3550 |
| LKPG 4502Z MT | TAG4546Z | 9326 | 7867 | 6134 | 4646 | 3370 |
|
| LKPG 4502Z MT | ZB29KQE-TFD | 10570 | 8910 | 7460 | 6210 | 5420 | 3800 |
| LKPG 4502Z MT | TAG4561Z | 11700 | 9953 | 7914 | 6133 | 4560 |
|
| LKPG 4502Z MT | ZB38KQE-TFD | 13300 | 11200 | 9350 | 7759 | 6350 | 5200 |
| LKPG 4502Z MT | TAG4568Z | 13986 | 11787 | 9463 | 7429 | 5639 |
|
| LKPG 4502Z MT | ZB45KQE-TFD | 15600 | 13100 | 10950 | 9100 | 7500 | 6150 |
| LKPG 4502Z MT | TAG4573Z | 14735 | 12567 | 10122 | 8000 | 6155 |
|
| LKPG 4502Z MT | ZB48KQB-TFD | 17070 | 14390 | 12050 | 10020 | 8260 | 6730 |
| LBP R404A | Compressor | Euismod(w) | |||||
| Temperature evanescente (C) | |||||||
| Code |
| -10℃ | -15℃ | -20℃ | -25℃ | -30℃ | -35℃ |
| LKPG 4001Z LS | CAH2420Z | 1047 | 836 | 654 | 547 | 357 | 232 |
| LKPG 4001Z LS | CAJ2432Z | 1560 | 1227 | 950 | 792 | 510 | 318 |
| LKPG 4001Z LS | CAJ2446Z | 2290 | 1821 | 1423 | 1194 | 797 | 549 |
| LKPG 4001Z LT | TAJ2464Z | 3012 | 2412 | 1902 | 1605 | 1076 | 723 |
| LKPG 4001Z LT | TFH2480Z | 4419 | 3476 | 2662 | 2183 | 1319 | 738 |
| LKPG 4001Z LT | TFH2511Z | 6222 | 4931 | 3796 | 3135 | 2016 | 1380 |
| LKPG 4501Z LT | TAG2516Z | 8839 | 6952 | 5324 | 4367 | 2638 | 1475 |
| LKPG 4501Z LT | TAG2522Z | 12444 | 9861 | 7592 | 6270 | 4031 | 2760 |
| Code | Condensans unitas dimensionum | ||
| L(mm) | B(mm) | H(mm) | |
| LKPG 4001... | 800 | 380 | 660 |
| LKPG 4501. | 1050 | 380 | 840 |
| LKPG 4502. | 1050 | 380 | 1240 |
CO=Condenser
C = Compressor
RIC = Liquid accipientis
RL Liquid-off valvo
RA = Suctionis clausa longe valvae
PA = High pressura switch
PB = Minimum pressura switch
FL = Siccior filter
SL1 = valvae Liquid solenoid
IN=Sight glass
VS = Impetus subsidio valvae
RC = Crankcase calefacientis
MF = Muffler
SPO = Oleum Separator (libitum)
BPV=Condenser fan celeritate variatione (libitum)
